Develops high-performance, ultra-thin metalenses for next-generation optical applications. These semiconductor lenses replace traditional bulky optics with nanostructured, flat-surface alternatives that offer reduced size and weight while maintaining or enhancing performance. Through strategic collaborations with A*STAR institutes, MetaOptics has developed scalable processes such as Direct Laser Writing and 300mm wafer-level metasurface fabrication.

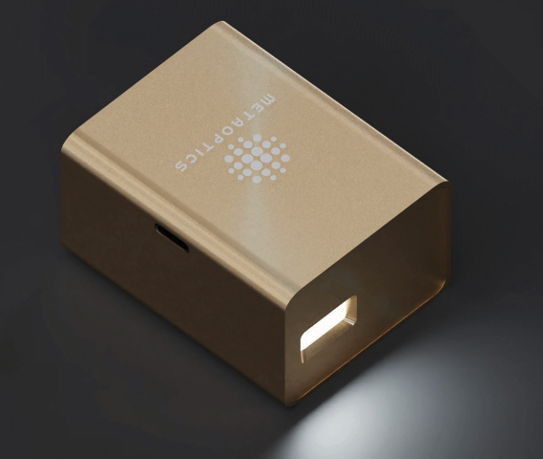

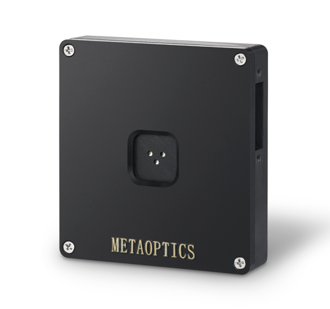

MetaOptics metalenses are applicable across multiple industries including consumer electronics (smartphones, AR/VR), IoT cameras, automotive LiDAR, biometric authentication, and compact projection systems. Our pico projectors and color cameras serve emerging markets in AI-powered imaging, while our scalable manufacturing enables cost-effective integration into high-volume products.
